Xinya AWM Wire Authorized Suzhou distributor · Xinya Electronic Co., Ltd.

UL 758 AWM · Recognized Component · UL File No. E170689

UL 758 AWM hook-up wire and industrial cable, supplied from Suzhou

We are the authorized Suzhou distributor of Xinya Electronic Co., Ltd., which has manufactured UL 758 AWM wire since 2008. UL styles from 300 V to 1000 V, 6–28 AWG, up to 11 colours, cut to length. Quoted to your specification for customers worldwide.

Browse the wire catalogue Request a quote
UL 758 AWM · E170689 VDE · 40028605 TÜV PV · IEC 62930 / 2 PfG 1169 / EN 50618 UL 4703 PV · E331816

Wire families

Every product page is built from the construction data we hold — voltage, temperature, AWG range, insulation and conductor. Where a value is not documented, the row is left out rather than estimated.

Wire family

VDE Wire

Harmonised European single-core cable — VDE Cert. No. 40028605 covers H05V-K and H07V-K.

View the line →

Wire family

TUV PV Wire

TÜV-certified photovoltaic cable lines cited under Certificate Nos. R 50484553, B 118907 0001 Rev. 01, T 50601863 01 and R 50334045.

View the line →

Wire family

UL PV Wire

UL 4703 photovoltaic and energy-storage DC cable, with UL Recognized File No. E331816 cited in the manufacturer catalogue.

View the line →

Wire family

PSE Wire

JIS-style VCT, VCTFK, VFF and VSF lines for the Japanese market. The source catalogue shows a PS E JET marking, but no PSE certificate number is published.

View the line →

Custom wire harness

Custom wire harnesses, built to your drawing

Send a drawing, a bill of materials, a sample or a photo with dimensions. We build the harness with Xinya-brand UL 758 AWM wire, the connector series you specify — JST, Molex, HongXing or any customer-specified brand — and the termination and protection your assembly calls for. Made to order from one piece upward.

Prototype first — we can build a sample before you commit. Send the drawing and we will produce a first article for your approval on dimensions, connector fit and termination. Nothing moves to mass production until that sample is signed off.

Configure your harness Browse harness capabilities
  • WireXinya UL 758 AWM, 6–28 AWG, 11 colours, cut to length
  • ConnectorsJST, Molex, HongXing, customer-specified brands
  • TerminationCrimp or solder-tinned ends — one end or both
  • ProtectionHeat-shrink, braided sleeving, conduit, overmould
  • Testing100% continuity and pull test, report on request
  • SamplingPrototype sample first, then repeat volume runs

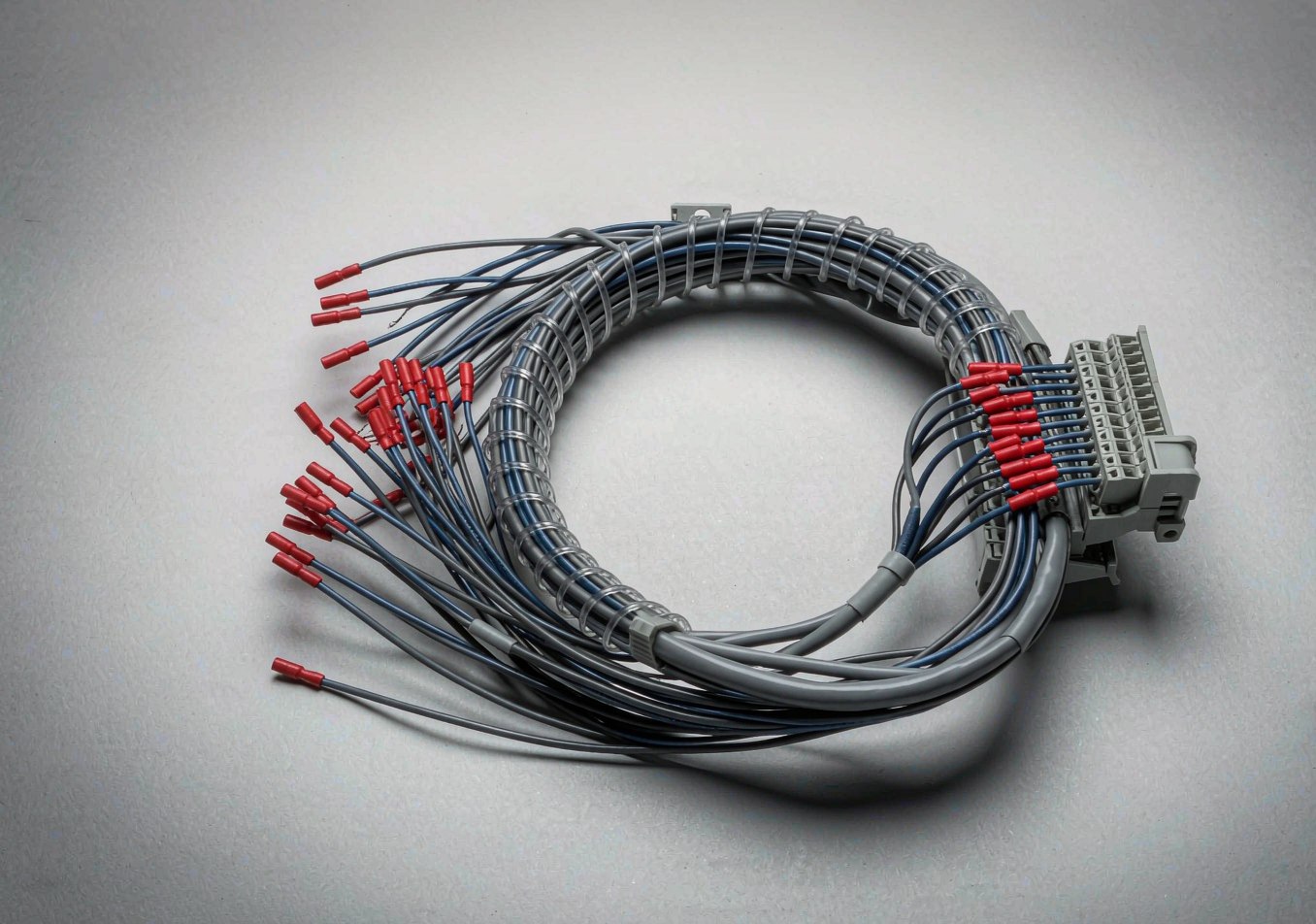

Industrial control harness with bootlace ferrules and terminal block
Sample industrial control harness — bootlace ferrules and terminal block, built from a customer drawing.

Certifications & approvals

Each record below identifies the certificate, report or file number available for the relevant line. Request the issued document for your quality team.

UL
UL File No. E170689
Recognized Component — Appliance Wiring Material Component recognition under UL 758 (AWM). The Table of Recognized Styles lists the styles covered. Held by the manufacturer, Xinya Electronic Co., Ltd.
CE
Report No. GZ241016021L
Low Voltage Directive 2014/35/EU — Declaration of Conformity Tested to EN 50525-1:2011 by Shenzhen Guozhu Testing and Certification Co., Ltd, 16 October 2024.
VDE
Cert. No. 40028605
VDE Marks Approval — H05V-K / H07V-K DIN EN 50525-2-31 (VDE 0285-525-2-31):2012-01. H05V-K 1 × 0.5–1.0 mm², H07V-K 1 × 1.5–35 mm². Updated 29 January 2024.
TUV
Cert. No. R 50484553; B 118907 0001 Rev. 01
Photovoltaic Cable — IEC 62930 Reference standard 62930 IEC 131. Cross-linked insulation and jacket; -40 °C to +90 °C; AC 1.0/1.0 kV and DC 1.5 kV. Certificate numbers are cited in the manufacturer catalogue.
TUV
Cert. No. T 50601863 01
Photovoltaic Cable — 2 PfG 1169 Reference standard 2 PfG 1169/08.2007. Cross-linked insulation and jacket; -40 °C to +90 °C; AC 0.6/1 kV and DC 1.8 kV. Certificate number is cited in the manufacturer catalogue.
TUV
Cert. No. R 50334045
Photovoltaic Cable — EN 50618 Reference standard EN 50618. Cross-linked insulation and jacket; -40 °C to +90 °C; AC 1.0/1.0 kV and DC 1.5 kV. Certificate number is cited in the manufacturer catalogue.
UL
Recognized File No. E331816
Photovoltaic Wire — UL 4703 XLPE photovoltaic wire; 105 °C dry / 90 °C wet; 600 V data table published. The catalogue also identifies 1000 V and 2000 V construction series, but no dimensional data rows were supplied for those series.

Download certificate PDFs

Certification files are held by the manufacturer, Xinya Electronic Co., Ltd. We supply within that listed range. No PSE certificate number is published. The source catalogue shows a PS E JET marking on selected VCT, VCTFK, VFF and VSF constructions.

Selected wire products

A sample of the catalogue. Every line is quoted to order — no prices are published.

See all wire products

Latest wire selection guides

Technical comparisons for UL AWM, XLPE, fluoropolymer, PV, VDE and PSE wire selection.

Read all guides

Questions & answers

Frequently asked questions

Certifications, lead time, payment, shipping and MOQ — the points buyers ask about most often. If something is still unclear, send us your requirement and we will answer directly. See the full FAQ →

01 Are you a manufacturer or a trading company?

We are a wire harness manufacturer — cutting, stripping, crimping, sealing and testing are all carried out in-house at our Suzhou plant. We are also an authorised distributor of Xinya brand electronic wire, so you can source both the wire and the finished harness from one supplier.

02 What certifications do your electronic wires have?

Our electronic wires carry UL, VDE, PSE and CE approvals, together with RoHS and REACH compliance for the European market; TUV approvals are available for PV and renewable-energy wire. Certificates and test reports are issued by the manufacturer and can be supplied with your quotation on request.

03 How long is the lead time?

For electronic wire, popular styles such as UL1007, UL1015, UL1061 and UL1569 are normally available quickly; other styles, non-standard colours and cut lengths usually take around 7 days. Wire harnesses are made to order, so the schedule depends on your drawing, connector availability and quantity — we confirm it in the quotation.

04 What are your payment terms?

We commonly accept T/T (telegraphic transfer), PayPal and Western Union. Typically a 30% deposit is required before production, with the balance paid before shipment.

05 How do you ship the goods?

Samples and small orders are shipped by international express (DHL, FedEx, UPS, TNT) or by air freight. Larger orders normally go by sea to reduce freight cost. We can quote EXW, FOB, CIF or door-to-door terms and will recommend the option that best fits your budget and delivery date.

06 Do you have a minimum order quantity (MOQ)?

We keep a low MOQ to support your business. Generally the MOQ is 1 piece for standard models, although it may vary slightly for customised products. Small trial orders are welcome.

07 Can you build harnesses to our own drawing or sample?

Yes. We build to print and build to sample — send us a 2D drawing, a BOM, connector part numbers or even a photo of the part in use, and we will assemble, test and quote accordingly.

08 Can I get a sample before placing a bulk order?

Yes. We are happy to build a prototype first so that you can approve the fit, crimp and finish before committing to volume. Send the drawing and the target quantity and we will quote sample cost and lead time.

09 What information do you need to give a quotation?

For wire: the style or UL number, AWG, voltage and temperature rating, insulation, conductor, colour and length. For harnesses: the drawing or BOM, connector brand and part number, terminal and housing type, wire specification, cut length and tolerance, sleeving or tubing, label and packaging requirements, quantity and destination. If anything is unclear we will ask — or propose a construction for you.

10 Do you support OEM / ODM and private labelling?

Yes. We work with customer-specified connectors and brands as well as JST, Molex and HongXing, and can add printed markers, custom labels, printed bags and your own carton artwork for OEM and ODM projects.

11 How do you control quality?

Every order goes through incoming wire inspection, cutting and stripping checks, crimp height and terminal pull-force testing, 100% continuity and open-and-short testing, and a final dimensional and visual inspection. Inspection records can be supplied with the shipment when your project requires them.

12 Can you help with wire and connector selection?

Yes — our engineers help match wire gauge, insulation and temperature rating to your current, voltage and working environment, and select a terminal and housing combination that crimps reliably. Describe the application or send a sample and we will propose a construction.

13 Can you supply cut lengths and custom packaging?

Yes. Wire can be supplied in cut lengths, coils or spools, with PE bags, cartons, pallets and printed labels arranged to suit your warehouse or production line.

14 Do you ship worldwide, and can I visit the factory?

We ship worldwide, with regular shipments to Europe, North America, South-East Asia, the Middle East and Australia. You are welcome to visit our plant in Suzhou, and you can see our production lines in the factory videos on this site.

15 What happens if there is a quality problem after delivery?

Contact us with the order or batch number and photos of the issue. We will check it against our production and inspection records and, where the fault is confirmed on our side, arrange replacement or credit.

Send us your requirement See our production lines

Need wire to a specification?

Send the style, AWG range, colour and length — or your BOM and drawing. We will come back with construction, availability and lead time. This catalogue publishes no prices; every enquiry is quoted directly.

Request a quote
