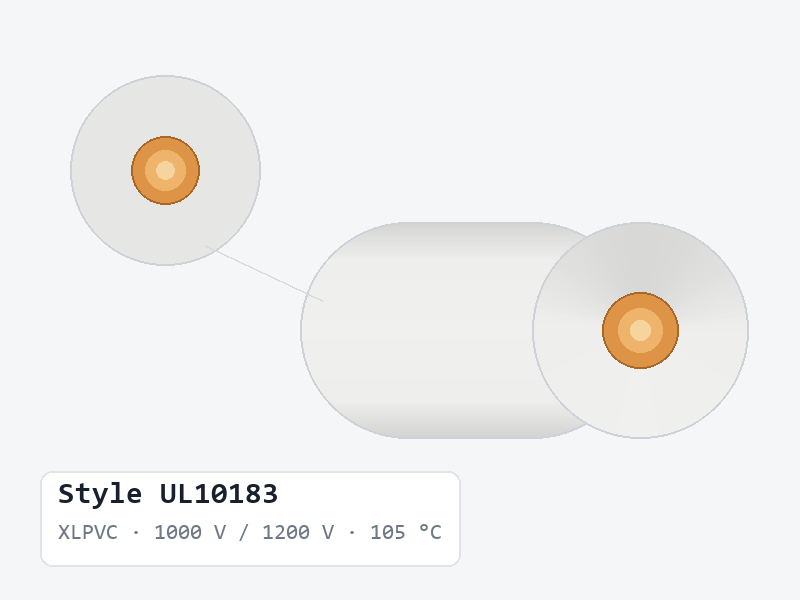

UL10183 1000 V / 1200 V 105 °C XLPVC Hook-Up Wire

UL10183 is a XLPVC-insulated hook-up wire manufactured by Xinya Electronic Co., Ltd. It is rated 1000 V / 1200 V, 105 °C. It is supplied in 12 recorded constructions spanning 10–30 AWG, with an overall diameter of 1.4–5.05 mm, cut to the length you order.

UL10183 at a glance

• 10–30 AWG, across 12 listed constructions
• Stranded conductor throughout the documented range
• Insulation wall 0.55–0.82 mm
• Overall diameter 1.4–5.05 mm
• Max. conductor resistance 3.54–381 Ω/km at 20 °C DC (roughly 1.1–116.1 Ω per 1,000 ft)
• Routine withstand test on every listed row: 3000 VAC, 1 min

How UL10183 compares with its nearest alternatives

UL10183 and UL1430 share the 105 °C temperature rating and XLPVC insulation. The distinction is in voltage rating (1000 V / 1200 V against 300 V). Overall diameter runs 1.4–5.05 mm for UL10183 against 1.05–2.4 mm for UL1430. UL1430 is the tighter of the two, so UL10183 is the option to take only when the larger diameter is acceptable. Insulation wall is 0.55–0.82 mm against 0.39–0.46 mm.

UL10183 and UL1431 share the 105 °C temperature rating and XLPVC insulation. The distinction is in voltage rating (1000 V / 1200 V against 600 V). Overall diameter runs 1.4–5.05 mm for UL10183 against 1.9–5.05 mm for UL1431. UL10183 is the tighter of the two where harness space is limited. Insulation wall is 0.55–0.82 mm against 0.79–0.83 mm.

Conductor construction and selection

Every construction listed for UL10183 is a stranded conductor, which suits harnesses and assemblies that are flexed or routed around a bend. The resistance column gives the maximum permitted value for the conductor at 20 °C DC.

How to read the UL10183 table

“Insulation O.D. (mm)” is measured over the insulation, not over a jacket, tape or braid. Conductor resistance is stated at 20 °C DC per kilometre — divide by 3.281 for ohms per 1,000 ft. The withstand column is a routine production test applied to finished lengths, not a continuous working voltage.

Questions buyers ask about UL10183

Which sizes of UL10183 are available?

10–30 AWG, across the 12 constructions in the table below. Sizes outside the table can be quoted on request.

Is UL10183 a stranded conductor?

Every construction documented for this line is stranded. Confirm the strand count you need — the “n/mm” figure in the table — because resistance and flexibility both depend on it, and two rows at the same size can differ.

What overall diameter does UL10183 run to?

The documented range is 1.4–5.05 mm. Quote the size, not the style alone, when the diameter has to fit a specific gland, grommet or channel.
