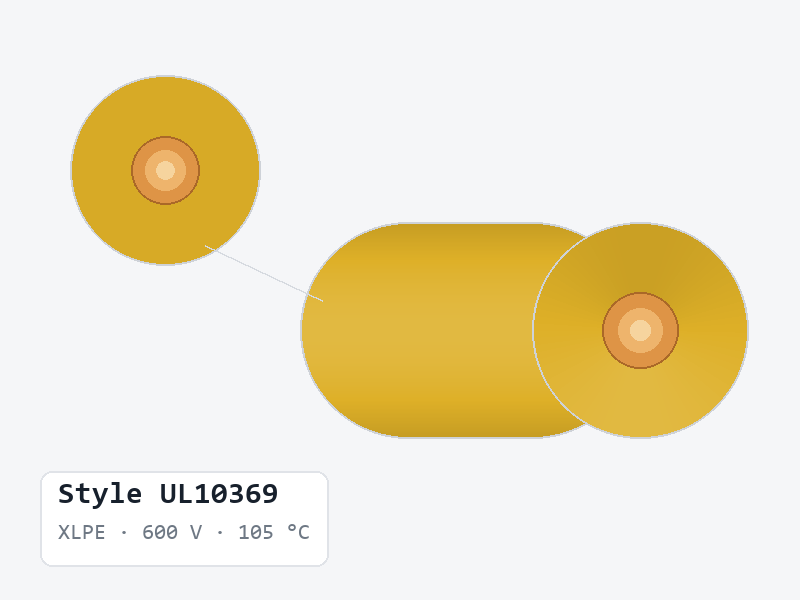

UL10369 600 V 105 °C XLPE Hook-Up Wire

UL10369 is a XLPE-insulated hook-up wire manufactured by Xinya Electronic Co., Ltd. It is rated 600 V, 105 °C. It is supplied in 19 recorded constructions spanning 10–24 AWG, with an overall diameter of 1.6–4.6 mm, cut to the length you order.

UL10369 at a glance

• 10–24 AWG, across 19 listed constructions
• Both solid (single-strand) and stranded conductors are listed — 6 solid and 13 stranded
• Insulation wall 0.54–0.59 mm
• Overall diameter 1.6–4.6 mm
• Max. conductor resistance 3.54–94.2 Ω/km at 20 °C DC (roughly 1.1–28.7 Ω per 1,000 ft)
• Routine withstand test on every listed row: 2000 VAC, 1 min

How UL10369 compares with its nearest alternatives

UL10369 and UL3386 share the 600 V rating and 105 °C temperature rating. Overall diameter runs 1.6–4.6 mm for UL10369 against 1.9–5.05 mm for UL3386. UL10369 is the tighter of the two where harness space is limited. Insulation wall is 0.54–0.59 mm against 0.79–0.83 mm. Size coverage is 10–24 AWG against 10–30 AWG.

UL10369 and UL11028 share the 600 V rating and 105 °C temperature rating. Overall diameter runs 1.6–4.6 mm for UL10369 against 0.85–1.5 mm for UL11028. UL11028 is the tighter of the two, so UL10369 is the option to take only when the larger diameter is acceptable. Insulation wall is 0.54–0.59 mm against 0.25–0.27 mm. Size coverage is 10–24 AWG against 20–28 AWG.

Conductor construction and selection

Both conductor families are listed. Single-strand rows such as 1/0.511 at 24 AWG suit fixed routing and insulation-displacement termination, where the conductor is not flexed after installation. Stranded rows such as 11/0.16 at 24 AWG flex repeatedly and are the usual choice for hand-soldered harnesses and anything that has to follow a moving path. Conductor resistance is the same at a given size, so the choice between them is mechanical rather than electrical.

How to read the UL10369 table

“Insulation O.D. (mm)” is measured over the insulation, not over a jacket, tape or braid. Conductor resistance is stated at 20 °C DC per kilometre — divide by 3.281 for ohms per 1,000 ft. The withstand column is a routine production test applied to finished lengths, not a continuous working voltage.

Questions buyers ask about UL10369

Which sizes of UL10369 are available?

10–24 AWG, across the 19 constructions in the table below. Sizes outside the table can be quoted on request.

Can UL10369 be supplied in both solid and stranded conductor?

Yes. The documented range covers 19 constructions, of which 6 are single-strand and 13 are stranded. Give the construction, not only the AWG, when you request a quotation.

What overall diameter does UL10369 run to?

The documented range is 1.6–4.6 mm. Quote the size, not the style alone, when the diameter has to fit a specific gland, grommet or channel.
