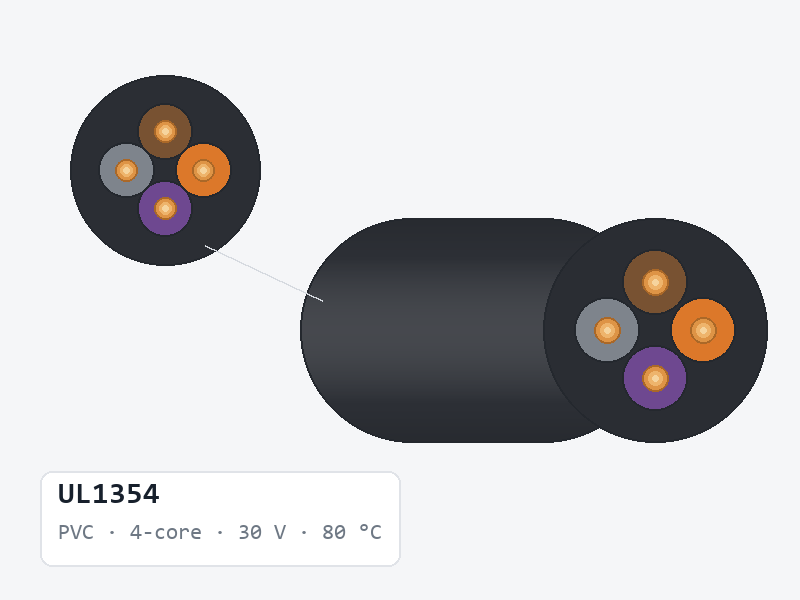

UL1354 30 V 80 °C Coaxial Cable for Class 2 Circuits
UL1354 30 V 80 °C coaxial cable, 24–30 AWG. O.D. 2.3–3.7 mm, solid and stranded. UL E170689 cited. Quote on request.
UL · E170689 is cited for this line. Request the issued document before relying on it for a finished-product approval.
Request certificate or datasheet →UL1354 is a coaxial cable manufactured by Xinya Electronic Co., Ltd. It is rated 30 V, 80 °C. The catalogue describes it as a coaxial construction. It is supplied in 7 recorded constructions spanning 24–30 AWG, with an overall diameter of 2.3–3.7 mm, cut to the length you order.
UL1354 at a glance
- 24–30 AWG, across 7 listed constructions
- Both solid (single-strand) and stranded conductors are listed — 3 solid and 4 stranded
- Insulation wall 0.32–0.81 mm
- Overall diameter 2.3–3.7 mm
How UL1354 compares with its nearest alternatives
UL1354 and UL20549 sit in the same catalogue group but are rated differently. Overall diameter runs 2.3–3.7 mm for UL1354 against 4.8–8.1 mm for UL20549. UL1354 is the tighter of the two where harness space is limited. Insulation wall is 0.32–0.81 mm against 0.4 mm. Size coverage is 24–30 AWG against 24–28 AWG.
Conductor construction and selection
Both conductor families are listed. Single-strand rows such as 1/0.254 at 30 AWG suit fixed routing and insulation-displacement termination, where the conductor is not flexed after installation. Stranded rows such as 7/0.10 at 30 AWG flex repeatedly and are the usual choice for hand-soldered harnesses and anything that has to follow a moving path. Conductor resistance is the same at a given size, so the choice between them is mechanical rather than electrical.
How to read the UL1354 table
“Insulation O.D. (mm)” is measured over the insulation, not over a jacket, tape or braid. “Jacket O.D. (mm)” is the finished cable diameter, which is the value to quote for gland, grommet and connector sizing.
Questions buyers ask about UL1354
Which sizes of UL1354 are available?
24–30 AWG, across the 7 constructions in the table below. Sizes outside the table can be quoted on request.
Can UL1354 be supplied in both solid and stranded conductor?
Yes. The documented range covers 7 constructions, of which 3 are single-strand and 4 are stranded. Give the construction, not only the AWG, when you request a quotation.
What overall diameter does UL1354 run to?
The documented range is 2.3–3.7 mm. Quote the size, not the style alone, when the diameter has to fit a specific gland, grommet or channel.
Detailed specification table
Manufacturer construction data for UL1354. Values are transcribed from the source specification sheet. Confirm the final construction and order requirements during quotation.
Scroll horizontally to view all specifications
| AWG | Construction | Conductor diameter (mm) | Insulation thickness (mm) | Insulation O.D. (mm) | Spiral construction (No./mm) | Jacket thickness (mm) | Jacket O.D. (mm) | Characteristic impedance (Ω) |
|---|---|---|---|---|---|---|---|---|
| 30 | 1/0.254 | 0.25 | 0.32 | 0.90 | 26/0.10 | 0.60 | 2.30 | 50 |
| 30 | 7/0.10 | 0.30 | 0.40 | 1.10 | 32/0.10 | 0.60 | 2.50 | 50 |
| 28 | 1/0.32 | 0.32 | 0.44 | 1.20 | 34/0.10 | 0.60 | 2.60 | 50 |
| 28 | 7/0.127 | 0.38 | 0.51 | 1.40 | 40/0.10 | 0.60 | 2.80 | 50 |
| 26 | 1/0.404 | 0.40 | 0.55 | 1.50 | 42/0.10 | 0.60 | 2.90 | 50 |
| 26 | 7/0.16 | 0.48 | 0.61 | 1.70 | 47/0.10 | 0.60 | 3.10 | 50 |
| 24 | 7/0.20 | 0.60 | 0.81 | 2.20 | 51/0.12 | 0.63 | 3.70 | 50 |
Source specification sheet: 1354.
