UL20276 Shielded Flexible Drag-Chain Control Cable

UL20276 shielded, drag-chain (continuous-flex) multi-conductor cable — UL Flexible Industrial Control Wire. UL 758 AWM · Style UL20276, File E170689. Co...

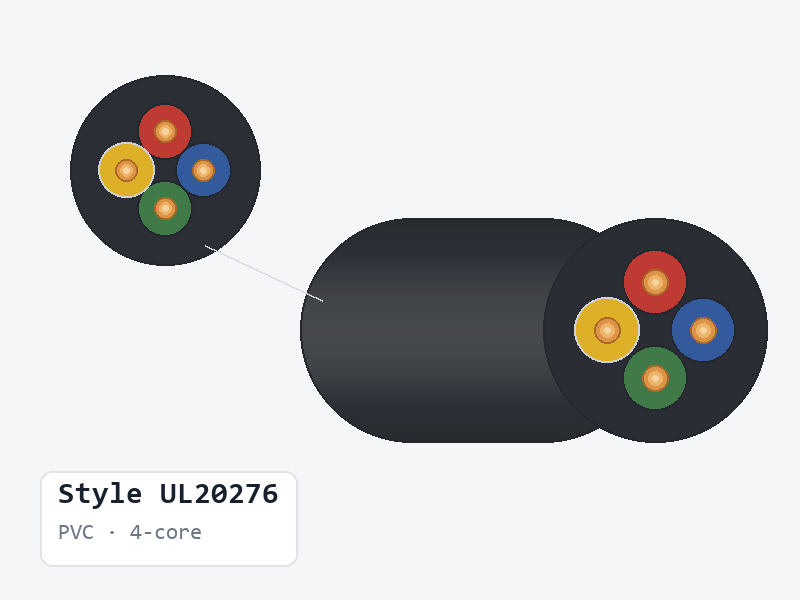

UL20276 Shielded Flexible Drag-Chain Control Cable product image
Inquiry-only catalogue. No prices are published and there is no cart. Send the quantity, colour and length — or your BOM — and we will quote directly.
Documented on file

UL · E170689 is cited for this line. Request the issued document before relying on it for a finished-product approval.

Request certificate or datasheet →

UL20276 is a multi-conductor cable manufactured by Xinya Electronic Co., Ltd. It belongs to the UL Flexible Industrial Control Wire group in this catalogue. It is described as a shielded, drag-chain (continuous-flex) construction, supplied cut to the length you order.

Standard and approval. UL 758 AWM · Style UL20276. The certificate or file number E170689 (UL) is cited for this line; request the issued document before relying on it for a finished-product approval.

What is documented for UL20276 today

The construction table below is transcribed from the manufacturer catalogue sheet for FLEX-UL20276-SB. It lists 27 constructions spanning 24–28 AWG, with an overall diameter of 3.4–8.1 mm and a routine 500 V/min withstand test on every listed row. Insulation and jacket: PVC insulation over a fine-stranded tinned copper conductor, with a tinned copper braid shield and a PVC jacket. The line is rated 80 °C and 30 V.

What to send with a UL20276 enquiry

Give the AWG, the core or pair count, the length and the colour and we will quote the construction that matches. If a drawing or a from-to list already exists, send that instead and we will confirm the specification in writing before any tooling is committed.

Manufacturer product data

  • Rated temperature: 80 °C
  • Rated voltage: 30 V
  • Reference standard: UL 758, UL 1581
  • Conductor: tinned or bare copper
  • Insulation and jacket: PVC
  • Shield: tinned wire braid
  • Passes UL VW-1 and JQA-F-Mark flame test
  • Application: free continuous reciprocating movement, robots and mobile machines

Detailed specification table

Scroll horizontally to view all specifications

FLEX-UL20276-SB construction data
AWGConstruction (No./mm)Conductor diameter (mm)Core countInsulation thickness (mm)Insulation O.D. (mm)Braid shieldJacket thickness (mm)Jacket O.D. (mm)Max. conductor resistance (Ω/km, 20°C, DC)Withstand voltage test (V/min)
2819/0.080.41P0.200.80Tinned Flexible Copper0.853.40239500
2819/0.080.43C0.200.80Tinned Flexible Copper0.853.50239500
2819/0.080.42P0.200.80Tinned Flexible Copper0.854.20239500
2819/0.080.43P0.200.80Tinned Flexible Copper0.854.40239500
2819/0.080.44P0.200.80Tinned Flexible Copper0.854.80239500
2819/0.080.46P0.200.80Tinned Flexible Copper0.855.80239500
2819/0.080.47P0.200.80Tinned Flexible Copper0.855.80239500
2819/0.080.48P0.200.80Tinned Flexible Copper0.856.10239500
2819/0.080.410P0.200.80Tinned Flexible Copper0.856.40239500
2630/0.080.51P0.251.00Tinned Flexible Copper0.853.80150500
2630/0.080.53C0.251.00Tinned Flexible Copper0.854.00150500
2630/0.080.52P0.251.00Tinned Flexible Copper0.854.80150500
2630/0.080.53P0.251.00Tinned Flexible Copper0.855.10150500
2630/0.080.54P0.251.00Tinned Flexible Copper0.855.60150500
2630/0.080.56P0.251.00Tinned Flexible Copper0.856.80150500
2630/0.080.57P0.251.00Tinned Flexible Copper0.856.80150500
2630/0.080.58P0.251.00Tinned Flexible Copper0.857.20150500
2630/0.080.510P0.251.00Tinned Flexible Copper0.857.50150500
2441/0.080.61P0.251.10Tinned Flexible Copper0.854.0094.2500
2441/0.080.63C0.251.10Tinned Flexible Copper0.854.2094.2500
2441/0.080.62P0.251.10Tinned Flexible Copper0.855.1094.2500
2441/0.080.63P0.251.10Tinned Flexible Copper0.855.4094.2500
2441/0.080.64P0.251.10Tinned Flexible Copper0.856.0094.2500
2441/0.080.66P0.251.10Tinned Flexible Copper0.857.3094.2500
2441/0.080.67P0.251.10Tinned Flexible Copper0.857.3094.2500
2441/0.080.68P0.251.10Tinned Flexible Copper0.857.7094.2500
2441/0.080.610P0.251.10Tinned Flexible Copper0.858.1094.2500
