UL2587 Shielded Flexible Drag-Chain Control Cable

UL2587 multi-conductor cable, 24–28 AWG. O.D. 6.3–11.1 mm, stranded, up to 10 cores, shielded. UL E170689 cited. Quote on request.

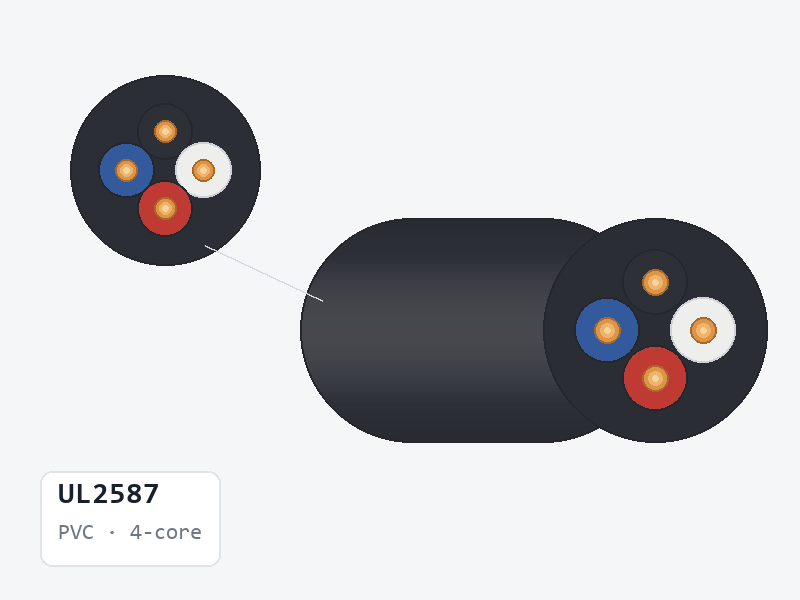

UL2587 Shielded Flexible Drag-Chain Control Cable product image
Inquiry-only catalogue. No prices are published and there is no cart. Send the quantity, colour and length — or your BOM — and we will quote directly.
Documented on file

UL · E170689 is cited for this line. Request the issued document before relying on it for a finished-product approval.

Request certificate or datasheet →

UL2587 is a multi-conductor cable manufactured by Xinya Electronic Co., Ltd. The catalogue describes it as a shielded, drag-chain (continuous-flex) construction. It is supplied in 27 recorded constructions spanning 24–28 AWG, with an overall diameter of 6.3–11.1 mm, cut to the length you order.

UL2587 at a glance

  • 24–28 AWG, across 27 listed constructions
  • Stranded conductor throughout the documented range
  • Insulation wall 0.8 mm
  • Overall diameter 6.3–11.1 mm
  • Max. conductor resistance 94.2–239 Ω/km at 20 °C DC (roughly 28.7–72.8 Ω per 1,000 ft)
  • Routine withstand test on every listed row: 2000 V/min

How UL2587 compares with its nearest alternatives

UL2587 and UL20549 sit in the same catalogue group but are rated differently. Overall diameter runs 6.3–11.1 mm for UL2587 against 4.8–8.1 mm for UL20549. UL20549 is the tighter of the two, so UL2587 is the option to take only when the larger diameter is acceptable. Insulation wall is 0.8 mm against 0.4 mm.

Conductor, core count and shielding

Every construction listed for UL2587 is a stranded conductor, which suits harnesses and assemblies that are flexed or routed around a bend. The resistance column gives the maximum permitted value for the conductor at 20 °C DC.

Core counts run from 2 to 10 in the documented range. Overall diameter grows with core count, so the figure to quote for gland, grommet and connector selection is the finished-cable diameter column rather than the single-core insulation diameter.

How to read the UL2587 table

“Insulation O.D. (mm)” is measured over the insulation, not over a jacket, tape or braid. “Jacket O.D. (mm)” is the finished cable diameter, which is the value to quote for gland, grommet and connector sizing. Conductor resistance is stated at 20 °C DC per kilometre — divide by 3.281 for ohms per 1,000 ft.

Questions buyers ask about UL2587

Which sizes of UL2587 are available?

24–28 AWG, across the 27 constructions in the table below. Sizes outside the table can be quoted on request.

Is UL2587 a stranded conductor?

Every construction documented for this line is stranded. Confirm the strand count you need — the “n/mm” figure in the table — because resistance and flexibility both depend on it, and two rows at the same size can differ.

What overall diameter does UL2587 run to?

The documented range is 6.3–11.1 mm. Quote the size, not the style alone, when the diameter has to fit a specific gland, grommet or channel.

Manufacturer product data

  • Rated temperature: 90 °C
  • Rated voltage: 600 V
  • Reference standard: UL 758, UL 1581
  • Conductor: tinned or bare copper
  • Insulation and jacket: PVC
  • Shield: tinned wire braid
  • Passes UL VW-1 and JQA-F-Mark flame test
  • Application: free continuous reciprocating movement, robots and mobile machines

Detailed specification table

Scroll horizontally to view all specifications

FLEX-UL2587-SB construction data
AWGConstruction (No./mm)Conductor diameter (mm)Core countInsulation thickness (mm)Insulation O.D. (mm)Braid shieldJacket thickness (mm)Jacket O.D. (mm)Max. conductor resistance (Ω/km, 20°C, DC)Withstand voltage test (V/min)
2819/0.080.420.802.00Tinned Flexible Copper0.856.302392000
2819/0.080.430.802.00Tinned Flexible Copper0.856.602392000
2819/0.080.440.802.00Tinned Flexible Copper0.857.102392000
2819/0.080.450.802.00Tinned Flexible Copper0.857.702392000
2819/0.080.460.802.00Tinned Flexible Copper0.858.302392000
2819/0.080.470.802.00Tinned Flexible Copper0.858.302392000
2819/0.080.480.802.00Tinned Flexible Copper0.858.902392000
2819/0.080.490.802.00Tinned Flexible Copper0.859.702392000
2819/0.080.4100.802.00Tinned Flexible Copper0.8510.302392000
2630/0.080.520.802.10Tinned Flexible Copper0.856.501502000
2630/0.080.530.802.10Tinned Flexible Copper0.856.801502000
2630/0.080.540.802.10Tinned Flexible Copper0.857.401502000
2630/0.080.550.802.10Tinned Flexible Copper0.858.001502000
2630/0.080.560.802.10Tinned Flexible Copper0.858.601502000
2630/0.080.570.802.10Tinned Flexible Copper0.858.601502000
2630/0.080.580.802.10Tinned Flexible Copper0.859.201502000
2630/0.080.590.802.10Tinned Flexible Copper0.8510.001502000
2630/0.080.5100.802.10Tinned Flexible Copper0.8510.701502000
2441/0.080.620.802.20Tinned Flexible Copper0.856.7094.22000
2441/0.080.630.802.20Tinned Flexible Copper0.857.0094.22000
2441/0.080.640.802.20Tinned Flexible Copper0.857.6094.22000
2441/0.080.650.802.20Tinned Flexible Copper0.858.2094.22000
2441/0.080.660.802.20Tinned Flexible Copper0.858.9094.22000
2441/0.080.670.802.20Tinned Flexible Copper0.858.9094.22000
2441/0.080.680.802.20Tinned Flexible Copper0.859.6094.22000
2441/0.080.690.802.20Tinned Flexible Copper0.8510.4094.22000
2441/0.080.6100.802.20Tinned Flexible Copper0.8511.1094.22000

Source specification sheet: FLEX_UL2587_SB_page1_EN.png, FLEX_UL2587_SB_page2_EN.png.
