UL20626 Shielded Flexible Drag-Chain Control Cable

UL20626 shielded, drag-chain (continuous-flex) multi-conductor cable — UL Flexible Industrial Control Wire. UL 758 AWM · Style UL20626, File E170689. Co...

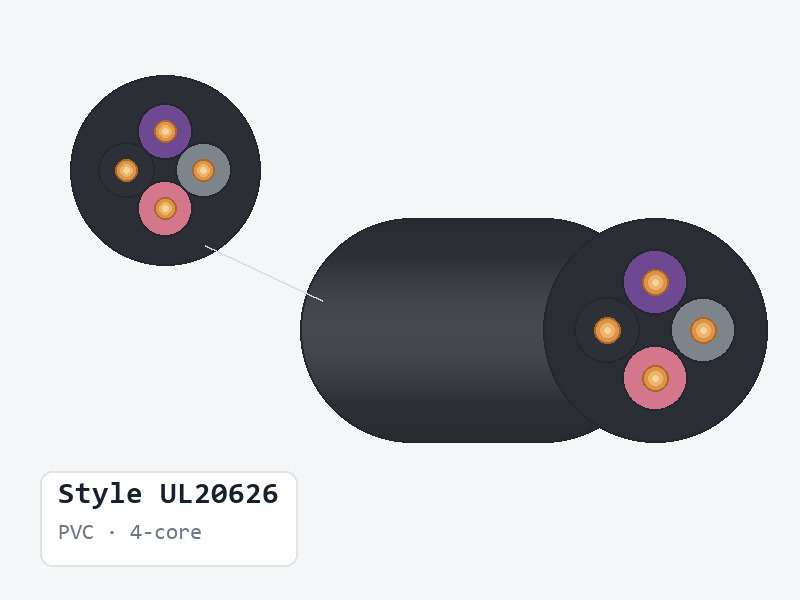

UL20626 Shielded Flexible Drag-Chain Control Cable product image
Inquiry-only catalogue. No prices are published and there is no cart. Send the quantity, colour and length — or your BOM — and we will quote directly.
Documented on file

UL · E170689 is cited for this line. Request the issued document before relying on it for a finished-product approval.

Request certificate or datasheet →

UL20626 is a multi-conductor cable manufactured by Xinya Electronic Co., Ltd. It belongs to the UL Flexible Industrial Control Wire group in this catalogue. It is described as a shielded, drag-chain (continuous-flex) construction, supplied cut to the length you order.

Standard and approval. UL 758 AWM · Style UL20626. The certificate or file number E170689 (UL) is cited for this line; request the issued document before relying on it for a finished-product approval.

What is documented for UL20626 today

The construction table below is transcribed from the manufacturer catalogue sheet for FLEX-UL20626-SB. It lists 27 constructions spanning 24–28 AWG, with an overall diameter of 4.8–8.1 mm and a routine 2000 V/min withstand test on every listed row. Insulation and jacket: PVC insulation over a tinned or bare copper conductor, with a tinned copper braid shield and a TPE jacket. The line is rated 90 °C and 600 V.

What to send with a UL20626 enquiry

Give the AWG, the core or pair count, the length and the colour and we will quote the construction that matches. If a drawing or a from-to list already exists, send that instead and we will confirm the specification in writing before any tooling is committed.

Manufacturer product data

  • Rated temperature: 90 °C
  • Rated voltage: 600 V
  • Reference standard: UL 758, UL 1581
  • Conductor: tinned or bare copper
  • Insulation and jacket: PVC insulation, TPE jacket
  • Shield: tinned wire braid
  • Passes UL VW-1
  • Application: free continuous reciprocating movement, robots and mobile machines

Detailed specification table

Scroll horizontally to view all specifications

FLEX-UL20626-SB construction data
