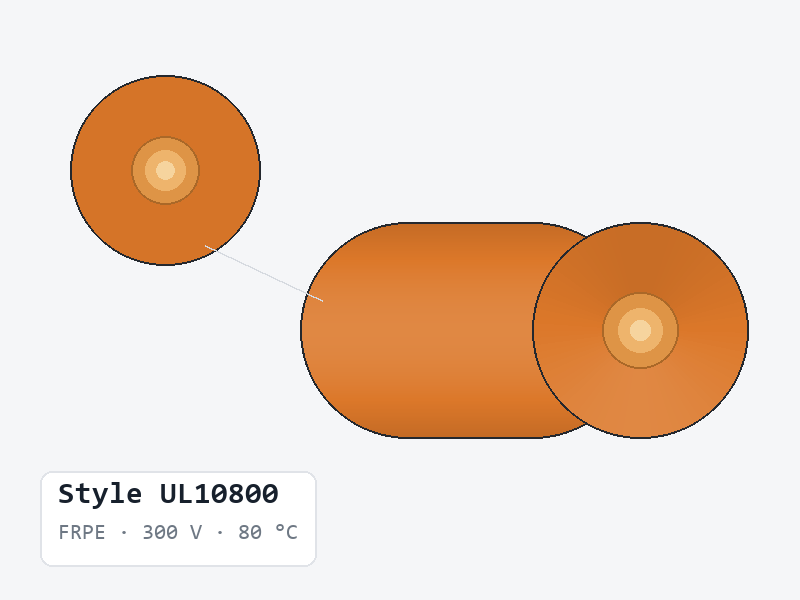

UL10800 300 V 80 °C FRPE Shielded Cable

UL10800 is a FRPE-insulated hook-up wire manufactured by Xinya Electronic Co., Ltd. It is rated 300 V, 80 °C. The catalogue describes it as a shielded construction. It is supplied in 8 recorded constructions spanning 16–30 AWG, with an overall diameter of 2.1–3.8 mm, cut to the length you order.

UL10800 at a glance

• 16–30 AWG, across 8 listed constructions
• Stranded conductor throughout the documented range
• Insulation wall 0.4–0.46 mm
• Overall diameter 2.1–3.8 mm
• Max. conductor resistance 14.6–381 Ω/km at 20 °C DC (roughly 4.5–116.1 Ω per 1,000 ft)
• All 8 listed rows carry a shield (32/0.10, 34/0.10, 38/0.10)

How UL10800 compares with its nearest alternatives

UL10800 and UL10602 share the 300 V rating and 80 °C temperature rating. Overall diameter runs 2.1–3.8 mm for UL10800 against 0.7–11.45 mm for UL10602. UL10800 is the tighter of the two where harness space is limited. Insulation wall is 0.4–0.46 mm against 0.25–0.31 mm. Size coverage is 16–30 AWG against 16–32 AWG.

UL10800 and UL3347 share the 300 V rating and 80 °C temperature rating. Overall diameter runs 2.1–3.8 mm for UL10800 against 1.1–2.4 mm for UL3347. UL3347 is the tighter of the two, so UL10800 is the option to take only when the larger diameter is acceptable. Insulation wall is 0.4–0.46 mm against 0.43–0.47 mm.

Conductor construction and selection

Every construction listed for UL10800 is a stranded conductor, which suits harnesses and assemblies that are flexed or routed around a bend. The resistance column gives the maximum permitted value for the conductor at 20 °C DC.

How to read the UL10800 table

“Insulation O.D. (mm)” is measured over the insulation, not over a jacket, tape or braid. “Jacket O.D. (mm)” is the finished cable diameter, which is the value to quote for gland, grommet and connector sizing. Conductor resistance is stated at 20 °C DC per kilometre — divide by 3.281 for ohms per 1,000 ft.

Questions buyers ask about UL10800

Which sizes of UL10800 are available?

16–30 AWG, across the 8 constructions in the table below. Sizes outside the table can be quoted on request.

Is UL10800 a stranded conductor?

Every construction documented for this line is stranded. Confirm the strand count you need — the “n/mm” figure in the table — because resistance and flexibility both depend on it, and two rows at the same size can differ.

What overall diameter does UL10800 run to?

The documented range is 2.1–3.8 mm. Quote the size, not the style alone, when the diameter has to fit a specific gland, grommet or channel.
